DIN 933 8.8

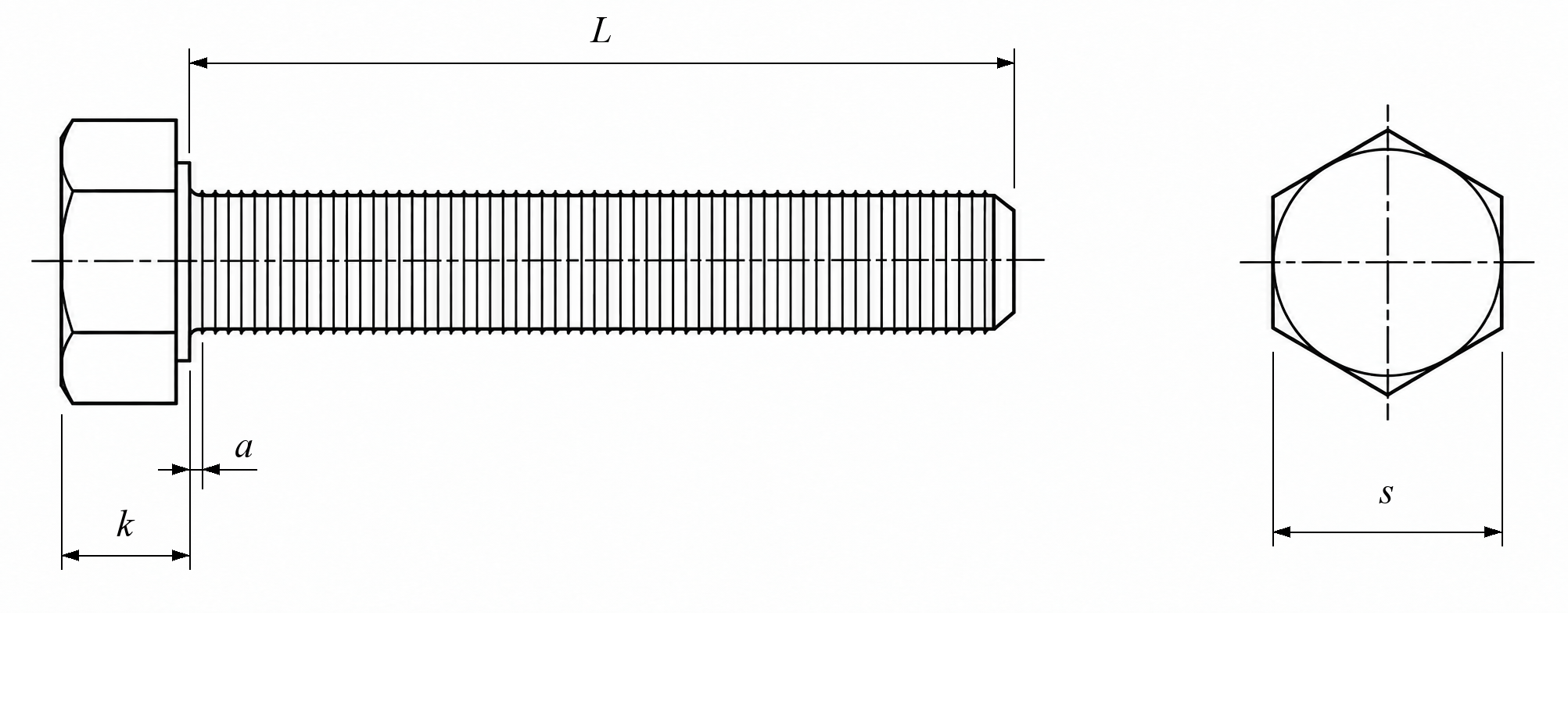

Tehnilised andmed

mm	M3	M4	M5	M6	M7	M8	M10	M12
s	5,5	7	8	10	11	13	17	19
k	2	2,8	3,5	4	4,8	5,3	6,4	7,5
a max.	1,5	2,1	2,4	3	3	3,75	4,5	5,25

mm	M14	M16	M18	M20	M22	M24	M27	M30
s	22	24	27	30	32	36	41	46
k	8,8	10	11,5	12,5	14	15	17	18,7
a max.	6	6	7,5	7,5	7,5	9	9	10,5

mm	M33	M36	M39	M42	M45	M48
s	50	55	60	65	70	75
k	21	22,5	25	26	28	30
a max.	10,5	12	12	13,5	13,5	15

Hind koos käibemaksuga

Toote variandid
			Tootekood
M5	16 mm	6.62 / 100 tk	20205016M
M5	35 mm	6.20 / 100 tk	20205035M
M6	14 mm	5.83 / 100 tk	20206014M
M6	16 mm	3.41 / 100 tk	20206016M
M6	20 mm	4.52 / 100 tk	20206020M
M7	20 mm	41.33 / 100 tk	20207020M
M7	40 mm	56.83 / 100 tk	20207040M
M8	8 mm	21.63 / 100 tk	20208008M
M8	10 mm	9.23 / 100 tk	20208010M
M8	12 mm	6.42 / 100 tk	20208012M
M8	16 mm	8.39 / 100 tk	20208016M
M8	20 mm	9.49 / 100 tk	20208020M
M8	25 mm	10.71 / 100 tk	20208025M
M8	30 mm	12.91 / 100 tk	20208030M
M8	35 mm	13.89 / 100 tk	20208035M
M8	80 mm	27.90 / 100 tk	20208080M
M10	20 mm	17.77 / 100 tk	20210020M
M10	25 mm	16.50 / 100 tk	20210025M
M10	30 mm	22.51 / 100 tk	20210030M
M10	35 mm	23.44 / 100 tk	20210035M
M10	45 mm	29.19 / 100 tk	20210045M
M10	50 mm	31.38 / 100 tk	20210050M
M10	60 mm	37.10 / 100 tk	20210060M
M10	65 mm	42.54 / 100 tk	20210065M
M12	25 mm	18.80 / 100 tk	20212025M
M12	30 mm	34.86 / 100 tk	20212030M
M12	35 mm	31.88 / 100 tk	20212035M
M12	40 mm	33.30 / 100 tk	20212040M
M12	45 mm	36.88 / 100 tk	20212045M
M12	50 mm	40.05 / 100 tk	20212050M
M12	55 mm	26.73 / 100 tk	20212055M
M12	60 mm	49.53 / 100 tk	20212060M
M12	65 mm	39.74 / 100 tk	20212065M
M12	70 mm	54.24 / 100 tk	20212070M
M12	80 mm	48.43 / 100 tk	20212080M
M12	90 mm	63.08 / 100 tk	20212090M
M14	140 mm	185.59 / 100 tk	20214140M
M14	160 mm	240.05 / 100 tk	20214160M
M16	16 mm	165.04 / 100 tk	20216016M
M16	40 mm	69.42 / 100 tk	20216040M
M16	45 mm	95.23 / 100 tk	20216045M
M16	50 mm	76.89 / 100 tk	20216050M
M16	55 mm	57.29 / 100 tk	20216055M
M16	60 mm	92.98 / 100 tk	20216060M
M16	70 mm	99.40 / 100 tk	20216070M
M16	80 mm	107.87 / 100 tk	20216080M
M16	100 mm	117.02 / 100 tk	20216100M
M16	160 mm	405.48 / 100 tk	20216160M
M16	260 mm	945.07 / 100 tk	20216260M
M18	50 mm	107.20 / 100 tk	20218050M
M18	60 mm	120.63 / 100 tk	20218060M
M18	100 mm	93.17 / 100 tk	20218100M
M20	50 mm	147.35 / 100 tk	20220050M
M20	60 mm	170.20 / 100 tk	20220060M
M20	70 mm	174.26 / 100 tk	20220070M
M20	80 mm	207.82 / 100 tk	20220080M
M20	90 mm	224.95 / 100 tk	20220090M
M20	100 mm	281.64 / 100 tk	20220100M
M20	220 mm	903.81 / 100 tk	20220220M
M20	240 mm	903.81 / 100 tk	20220240M
M22	140 mm	1017.63 / 100 tk	20222140M
M24	50 mm	268.03 / 100 tk	20224050M
M24	60 mm	150.57 / 100 tk	20224060M
M24	75 mm	358.78 / 100 tk	20224075M
M24	90 mm	450.74 / 100 tk	20224090M
M24	120 mm	362.74 / 100 tk	20224120M
M24	170 mm	816.58 / 100 tk	20224170M
M24	180 mm	908.55 / 100 tk	20224180M
M24	240 mm	1191.08 / 100 tk	20224240M
M27	55 mm	360.18 / 100 tk	20227055M
M27	60 mm	317.13 / 100 tk	20227060M
M27	80 mm	419.43 / 100 tk	20227080M
M27	90 mm	514.25 / 100 tk	20227090M
M27	160 mm	961.00 / 100 tk	20227160M
M30	50 mm	486.44 / 100 tk	20230050M
M30	55 mm	362.18 / 100 tk	20230055M
M30	60 mm	597.62 / 100 tk	20230060M
M30	90 mm	665.14 / 100 tk	20230090M
M30	100 mm	694.71 / 100 tk	20230100M
M30	110 mm	792.51 / 100 tk	20230110M
M30	120 mm	832.04 / 100 tk	20230120M
M30	160 mm	1023.29 / 100 tk	20230160M
M30	260 mm	1928.32 / 100 tk	20230260M
M36	50 mm	986.58 / 100 tk	20236050M
M36	70 mm	1221.42 / 100 tk	20236070M
M36	90 mm	1500.35 / 100 tk	20236090M
M36	100 mm	1718.21 / 100 tk	20236100M
M36	110 mm	1392.19 / 100 tk	20236110M
M36	120 mm	1806.59 / 100 tk	20236120M
M36	200 mm	2338.64 / 100 tk	20236200M
M48	190 mm	6310.24 / 100 tk	20248190M
